48V DC Rooftop Air Conditioner – 12,000 BTU Low-Profile Complete Kit

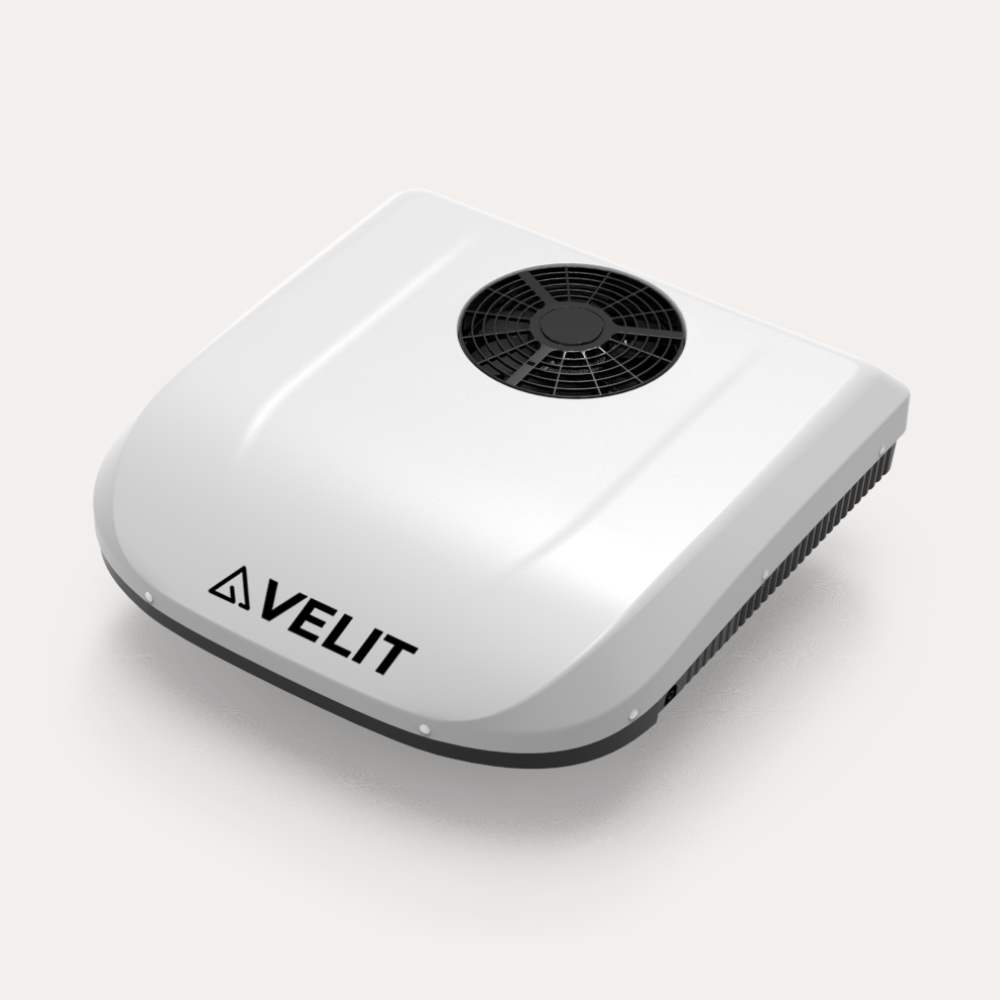

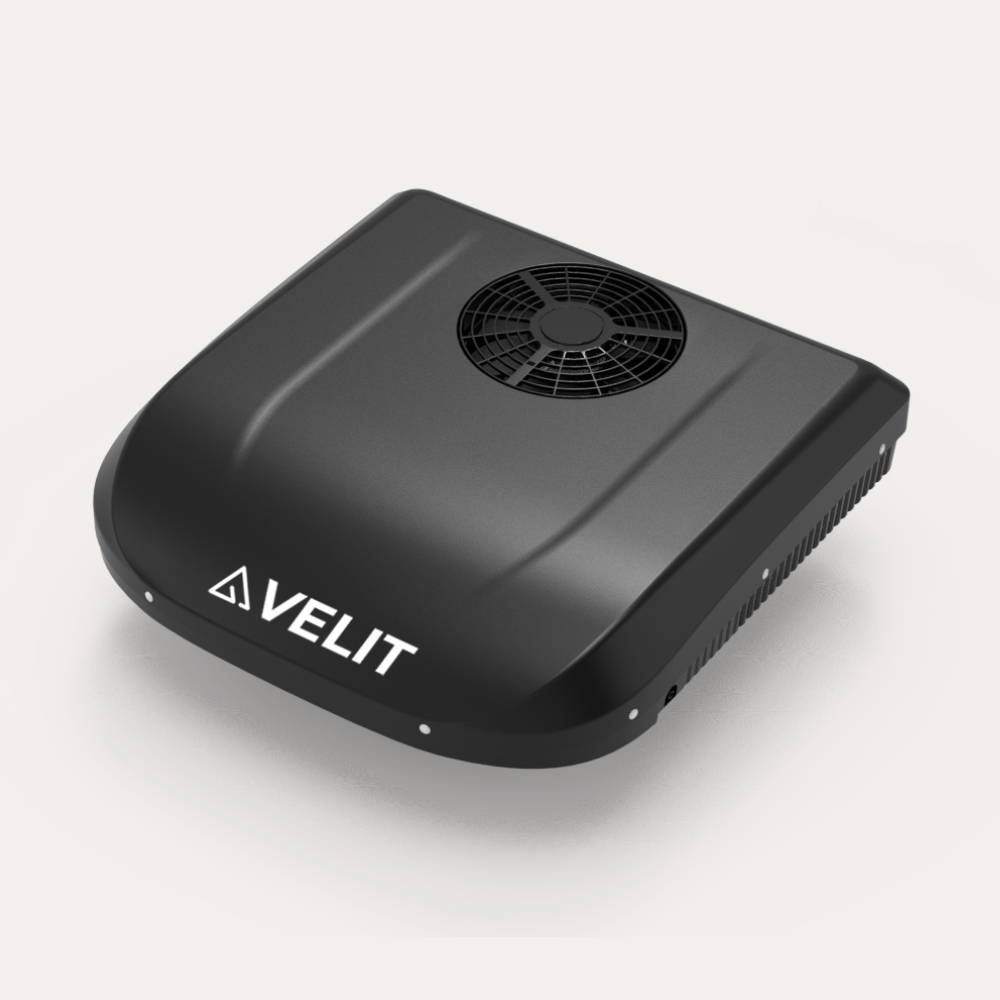

This 48V DC rooftop air conditioner delivers 12,000 BTU of cooling with a high-output twin-cylinder rotary compressor, drawing as low as 6A. A flush-mount motorized air distribution box spreads airflow evenly through the space. With a slim profile that needs only 7 inches of clearance, it fits standard 14″ × 14″ rooftop cutouts on RVs, vans, and other off-grid builds running on 48V battery systems.
Key Features
- 12,000 BTU cooling: High-output twin-cylinder rotary compressor
- 48V DC power: Draws as low as 6A

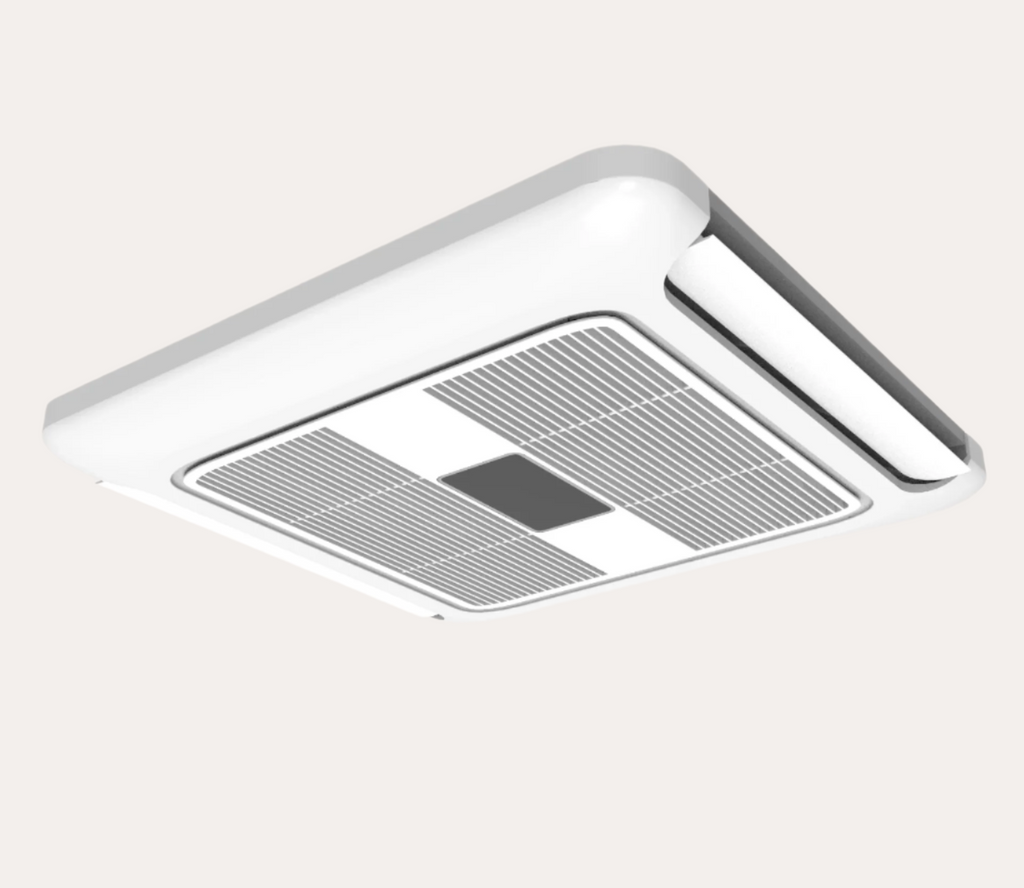

- Motorized air distribution: Flush-mount box for even air circulation

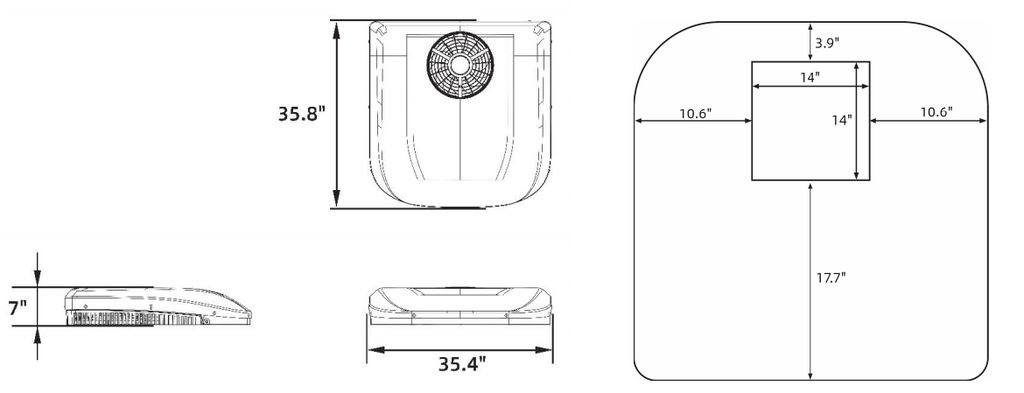

- Low profile: Requires only 7″ of clearance
- Standard fit: 14″ × 14″ rooftop cutouts
- Complete kit: Includes brackets, gasket, hardware, trim panel, remote, and wiring harness
Specifications
| Spec | Value |
|---|---|
| Cooling capacity | 12,000 BTU |
| Power supply | 48V DC |
| Current draw | As low as 6A |
| Compressor | Twin-cylinder rotary |
| Air distribution | Flush-mount motorized box |
| Height clearance | 7 in |
| Roof opening | 14″ × 14″ |
| Wiring harness | 15 ft, 12 AWG, with in-line fuse |
What’s in the Box
| Item | Included |
|---|---|
| AC unit | ✓ |
| Mounting brackets | ✓ |
| Sealing gasket | ✓ |
| Mounting hardware | ✓ |
| Interior trim panel | ✓ |
| Remote control | ✓ |
| 15 ft wiring harness with in-line fuse (12 AWG) | ✓ |
| User manual | ✓ |
| Sealant | Sold separately (needed for vans/uneven surfaces) |
Installation Note
This is a complete kit. For vans or other uneven roof surfaces, sealant is required and sold separately. Sealant is not needed for flat surfaces such as standard RV roofs.
Ideal For

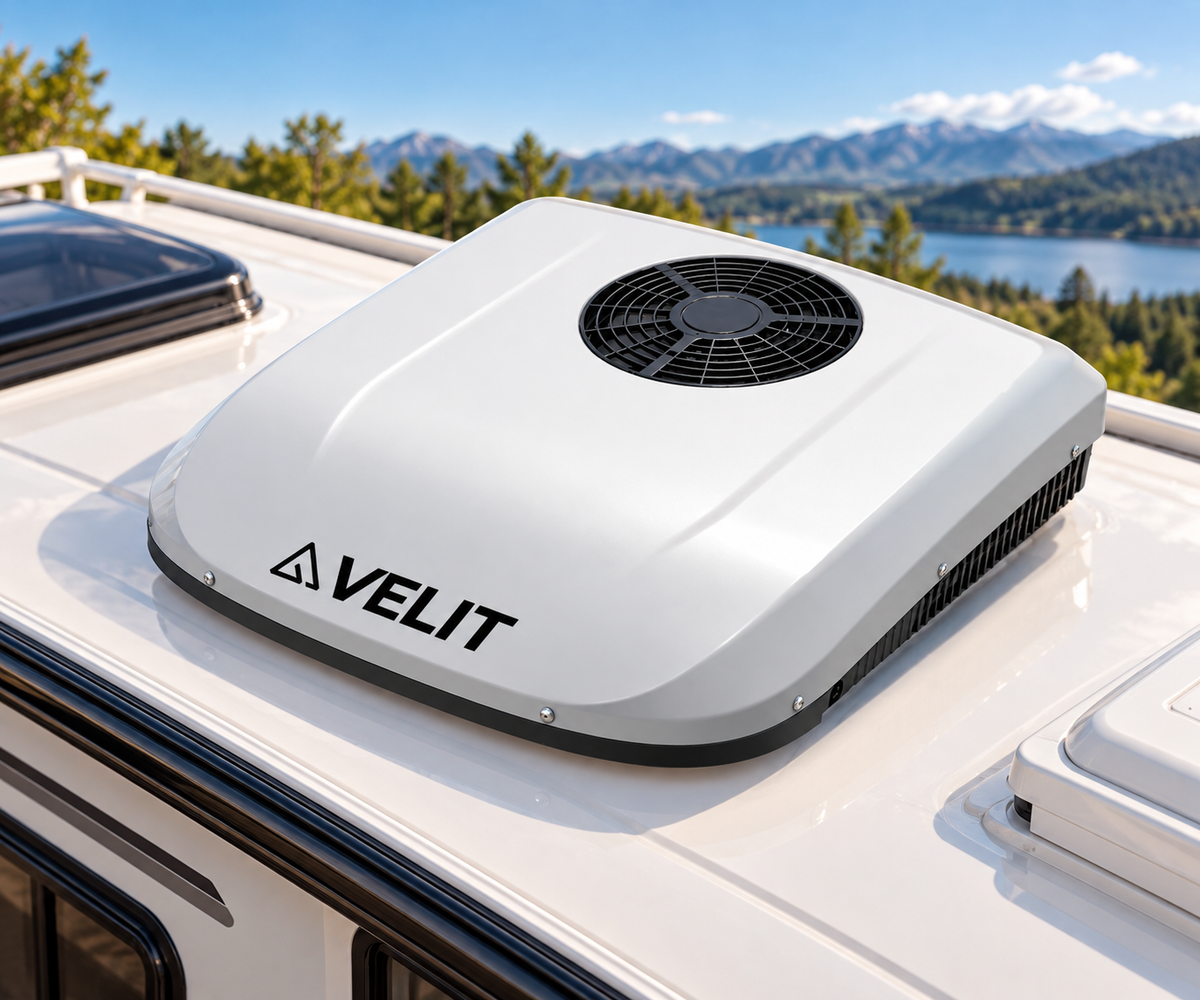

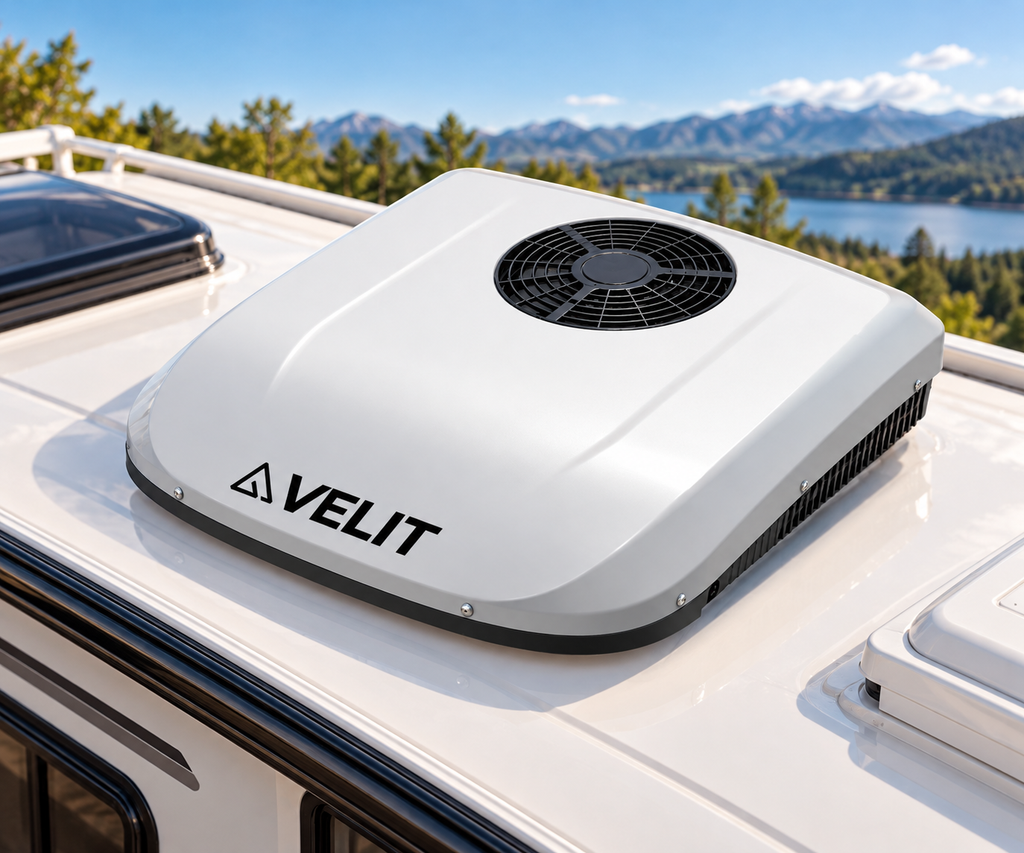

- Camper vans and conversion vans
- RVs and travel trailers
- Off-grid builds with a 48V battery system
FAQs
What power does it need?
A 48V DC battery system. It draws as low as 6A.
Will it fit my roof?
It fits standard 14″ × 14″ rooftop cutouts and needs only 7″ of clearance.
Is everything included for installation?
Yes, it’s a complete kit. The only exception is sealant, which is required for vans or uneven roofs and sold separately.
Do I need sealant for an RV?
Not for flat surfaces such as standard RV roofs; the included sealing gasket is enough.
Does it come with a remote?
Yes, a remote control is included.
