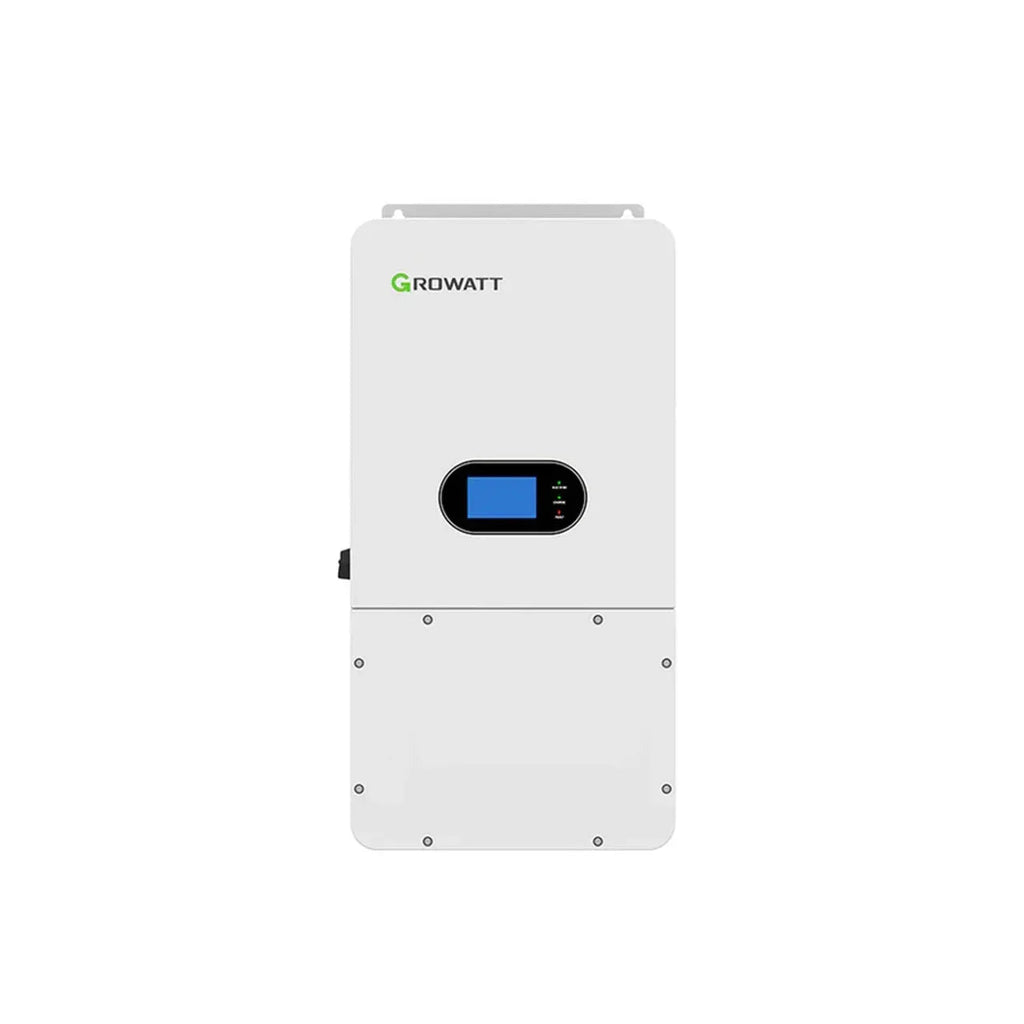

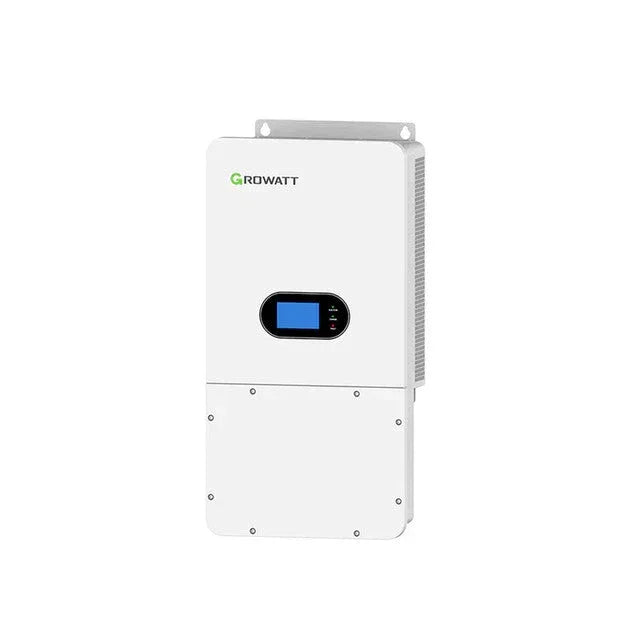

10kW Hybrid Solar Inverter – 120/240V Split Phase, 3 MPPTs, 200A Battery, Generator Support
$2,699.00
Skip to product information
10kW Hybrid Solar Inverter – 120/240V Split Phase, 3 MPPTs, 200A Battery, Generator Support
$2,699.00
Shipping calculated at checkout.
10kW Hybrid Solar + Battery Inverter – 120/240V Split Phase with 3 MPPTs
This 10kW hybrid inverter is built for North American split-phase systems in homes and light commercial installations. It supports DC-coupled, AC-coupled, and AC retrofit applications, so it works for new solar + storage systems or adding batteries to an existing one. With 200A charge/discharge current for 48V batteries, 10ms UPS-level transfer, and diesel or gas generator support, it’s designed for dependable backup power and flexible energy management.
Key Features
- 10,000W nominal output: 120/240V or 120/208V split phase
- 200A charge/discharge: For 48V lithium or lead-acid battery banks
- 10ms UPS function: Fast transfer during grid outages
- Generator support: Compatible with diesel and gas generators
- Flexible installation: DC-coupled, AC-coupled, and AC retrofit
- 3 MPP trackers: 2 strings per tracker for multi-array roofs
- Charging priority control: Set AC-first, solar-first, or generator-first from the touchscreen
- Connectivity: Built-in Wi-Fi, 4G, and Bluetooth for remote monitoring and firmware updates
- Outdoor rated: IP65 / NEMA 4 enclosure
Specifications
- Type: Hybrid (solar + battery)
- AC output power: 10,000W nominal
- AC output voltage: 120/208V, 120/240V split phase (180–280V AC)
- Peak efficiency: 98.1%
- CEC efficiency: 97%
- MPPT voltage range: 150–450V DC
- Startup voltage: 130V
- MPP trackers: 3 (2 strings per tracker)
- Battery voltage: 48V
- Battery type: Lithium or lead-acid
- Max charge/discharge current: 200A
- Transfer time: 10ms
- Generator support: Diesel and gas
- Operating temperature: -13°F to 140°F (derating above 113°F)
- Enclosure: IP65 / NEMA 4
- Display: Touchscreen
- Communication: Wi-Fi, 4G, Bluetooth
Protection & Safety
- AFCI (arc fault) protection
- Type II surge protection (DC and AC)
- AC overcurrent and overvoltage protection
- Ground fault and grid monitoring
- Anti-islanding protection
- Residual current monitoring
- Insulation resistance monitoring
Ideal For
- New residential solar + battery systems
- Adding battery backup to an existing solar system
- Homes and businesses that use a backup generator
- Light commercial installations
FAQs
Can I add this to an existing solar system?
Yes. It supports AC-coupled and AC retrofit installations, in addition to DC-coupled.
What batteries does it work with?
48V lithium or lead-acid battery banks, with up to 200A charge and discharge current.
How fast does it switch to backup power?
In about 10 milliseconds.
Does it work with a generator?
Yes, it supports diesel and gas generators and manages charging between solar, grid, and generator.
Can I choose which source charges the batteries?
Yes. You can set AC-first, solar-first, or generator-first charging from the touchscreen.
Can it be installed outdoors?
Yes. It’s IP65 / NEMA 4 rated and operates from -13°F to 140°F, with power derating above 113°F.
Does it need professional installation?
Yes. Installation should be done by a licensed electrician or certified solar installer.
