12kW Level 2 EV Charger – 50A, J1772, Wi-Fi, RFID, Solar PV Linkage, NEMA 4X | Compatible with All Brands EVS

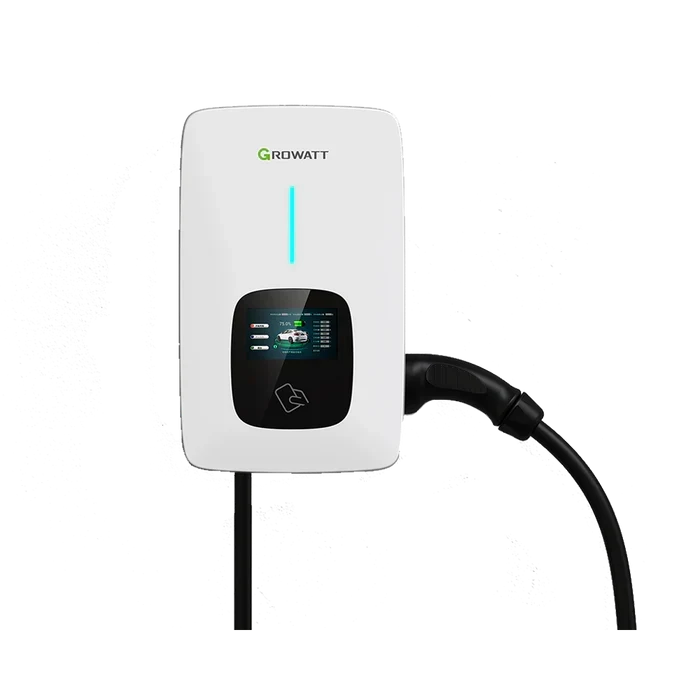

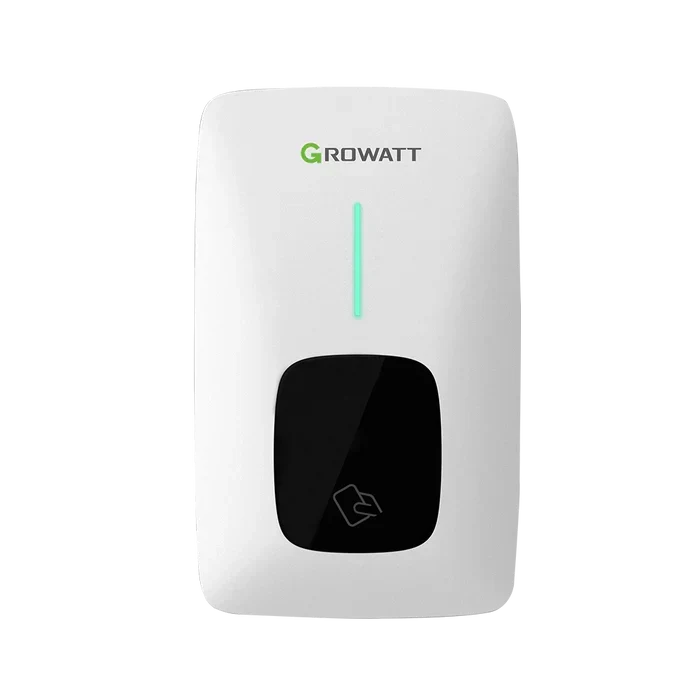

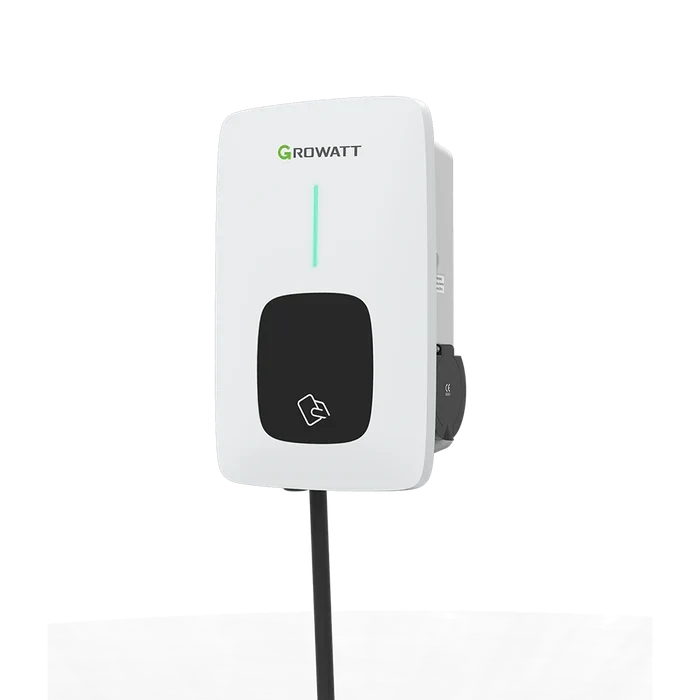

12kW Level 2 EV Charger – 50A with Wi-Fi, RFID & Solar PV Linkage

This 12kW Level 2 EV charger delivers up to 50A of charging power for homes and businesses. It connects with solar energy systems through PV Linkage mode, which charges your EV using surplus solar power. Control charging through the app, an RFID card, or Plug & Play, and manage it remotely over Wi-Fi, LAN, or optional 4G. The NEMA 4X-rated enclosure is built for indoor and outdoor installation.

Key Features

• 12kW / 50A charging: Level 2 AC charging at 240V
• J1772 connector: Compatible with EVs that use SAE J1772 (Type 1); Tesla vehicles require an adapter
• Solar PV Linkage: Charges from surplus solar energy when paired with a compatible solar system
• 4 working modes: Fast, PV Linkage, Off-Peak, and Load Balancing
• Flexible activation: App, RFID card, or Plug & Play
• Load balancing: For multi-charger setups
• Connectivity: Wi-Fi, LAN, and optional 4G to monitor and schedule charging remotely
• Weatherproof: NEMA Type 4X enclosure for indoor and outdoor use
• Built-in protection: Type A RCD with 6mA DC fault protection
• Certified: UL2594, UL2231, UL1998, CSA-C22.2

Specifications

• Type: Level 2 AC EV charger
• Max output power: 12kW
• Max output current: 50A
• Input voltage: 240V
• Connector: SAE J1772 (Type 1)
• Connection: Plug
• Cable length: 23 ft (7 m)
• Enclosure rating: NEMA Type 4X
• Dimensions (W × H × D): 9.68 × 15 × 6.06 in (246 × 382 × 154 mm)
• Weight: 20.9 lb (9.5 kg)
• Communication: LAN, Wi-Fi, optional 4G
• Working modes: Fast, PV Linkage, Off-Peak, Load Balancing
• Charge activation: App, RFID, Plug & Play
• Certifications: UL2594, UL2231, UL1998, CSA-C22.2

Ideal For

• Homeowners with an EV who want faster home charging
• Homes with solar panels looking to charge from solar energy
• Businesses and multi-unit properties with several chargers
• Installers looking for a smart, certified Level 2 charger

FAQs

What vehicles is it compatible with?
Any EV with an SAE J1772 (Type 1) charging port. Tesla vehicles need a J1772 adapter.

Can it charge my EV with solar power?
Yes. In PV Linkage mode it uses surplus solar energy when connected to a compatible solar system.

Can it be installed outdoors?
Yes. It has a NEMA Type 4X enclosure rated for indoor and outdoor use.

How do I start a charging session?
Through the app, with an RFID card, or Plug & Play.

Can I schedule charging for off-peak hours?
Yes, it includes an Off-Peak mode and can be scheduled through the app.

What power supply does it need?
240V. Installation should be done by a licensed electrician.

How long is the cable?
23 ft (7 m).
