12V DC Rooftop RV Air Conditioner – 9,000 BTU with Inverter Compressor
This 12V DC rooftop air conditioner connects directly to your RV’s 12V battery system, so it can run while driving or parked without an external inverter or soft starter. A twin rotary inverter compressor adjusts its speed to the conditions, delivering 3,500–9,000 BTU of cooling while keeping power draw efficient for battery-powered setups. The low-profile rooftop unit and ultra-slim indoor unit save space, and it runs as quietly as 40 dB in sleep mode. It’s designed for Class B RVs, camper vans, truck campers, pop-ups, and mini travel trailers.
Key Features
- 9,000 BTU cooling: Variable 3,500–9,000 BTU output

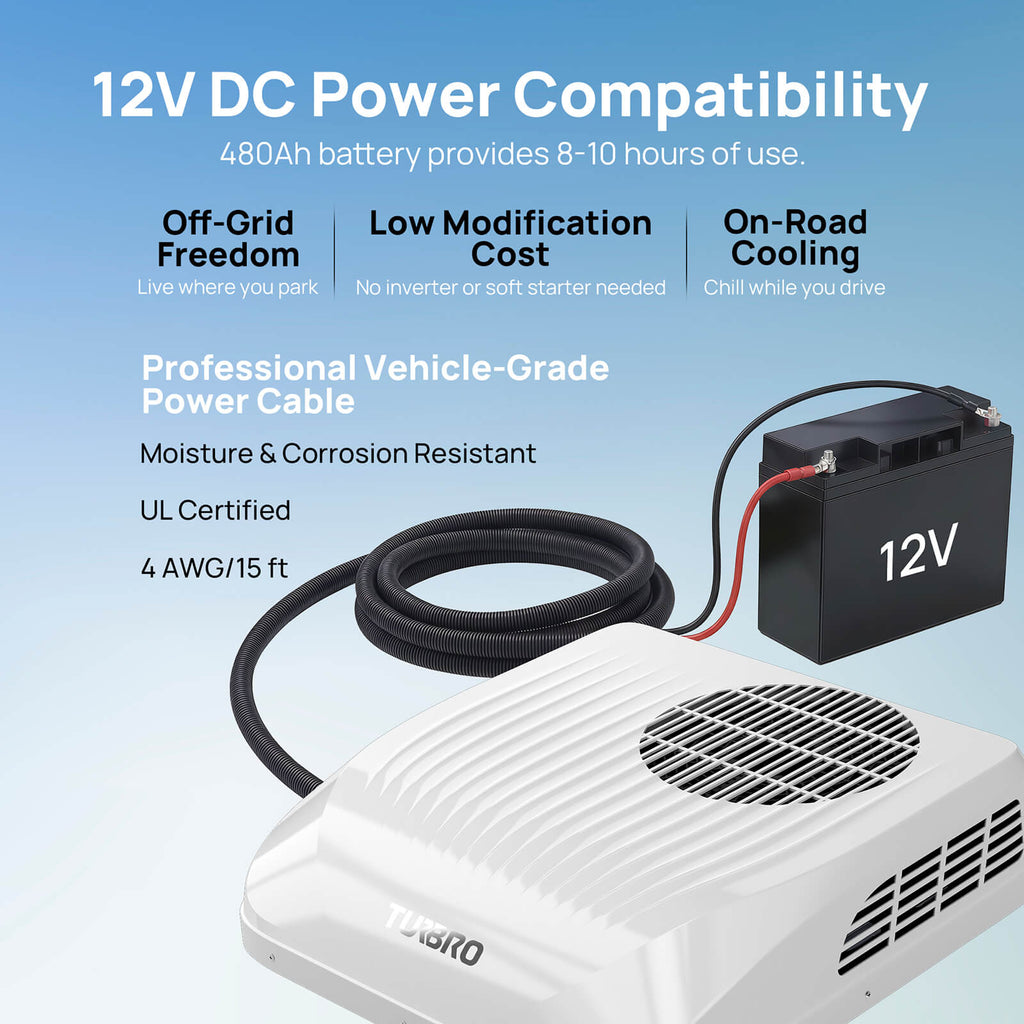

- Direct 12V DC power: Connects to your battery with a 4 AWG UL-certified power cable, no inverter or soft starter needed
- Runs while driving or parked: With adequate battery capacity and charging

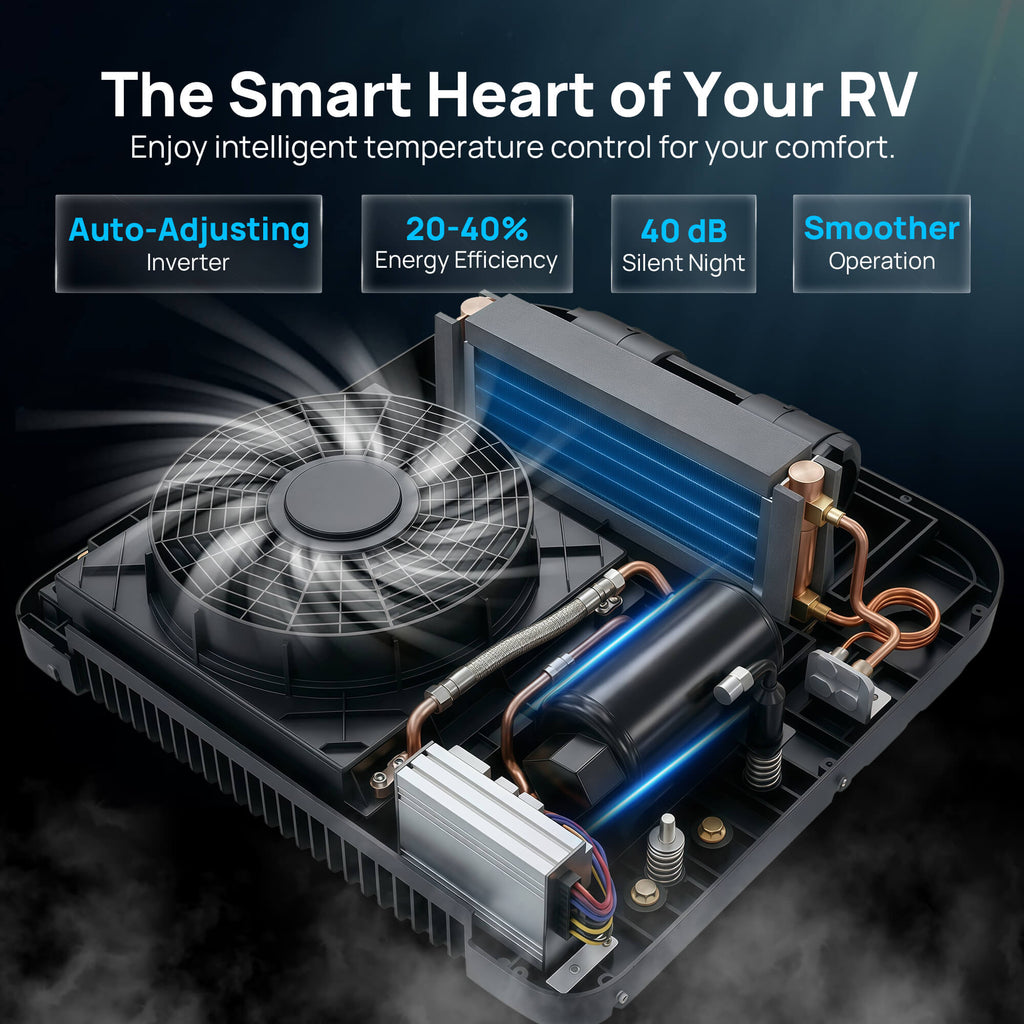

- Inverter compressor: Twin rotary compressor adjusts speed for consistent temperature and efficient power use

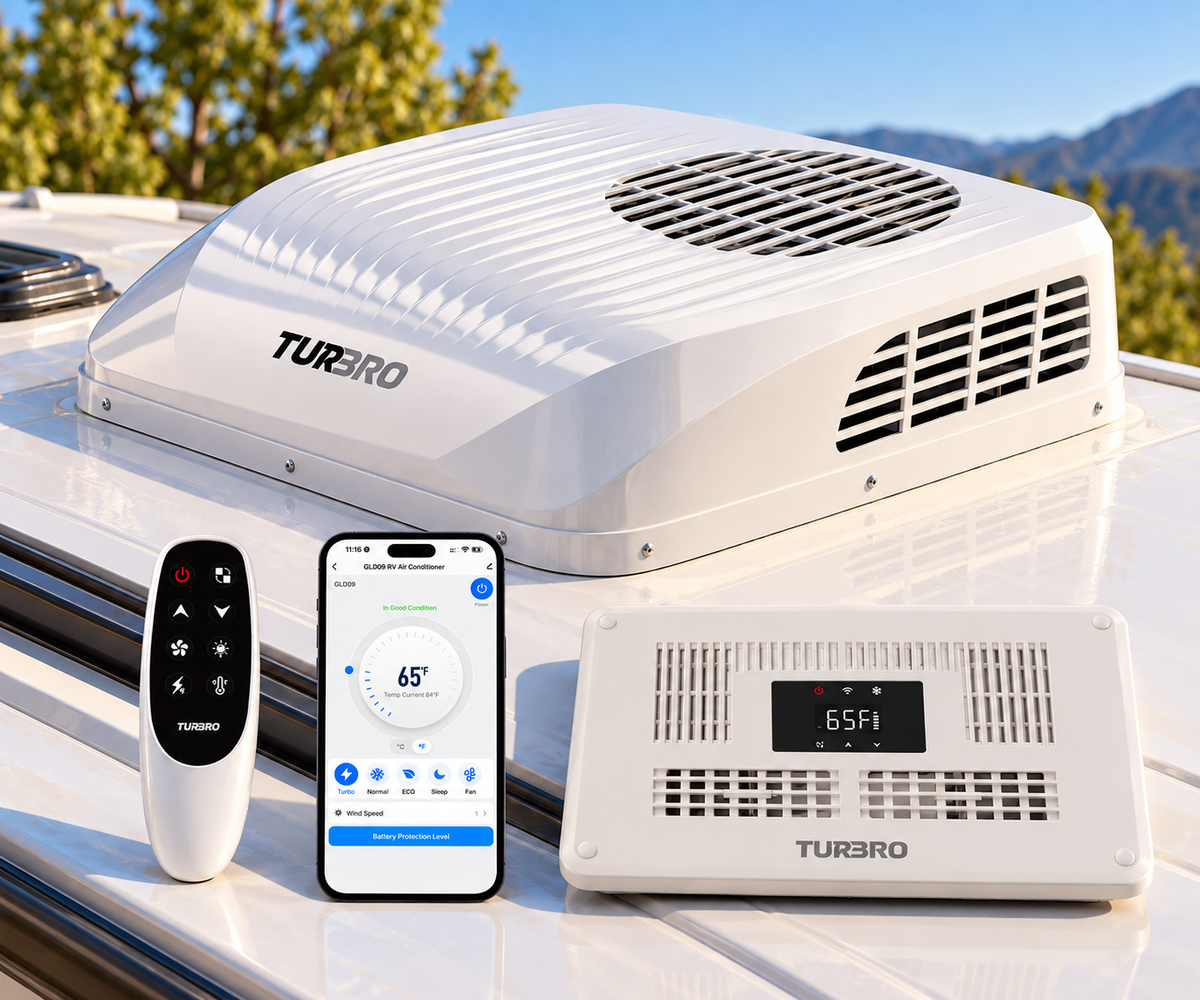

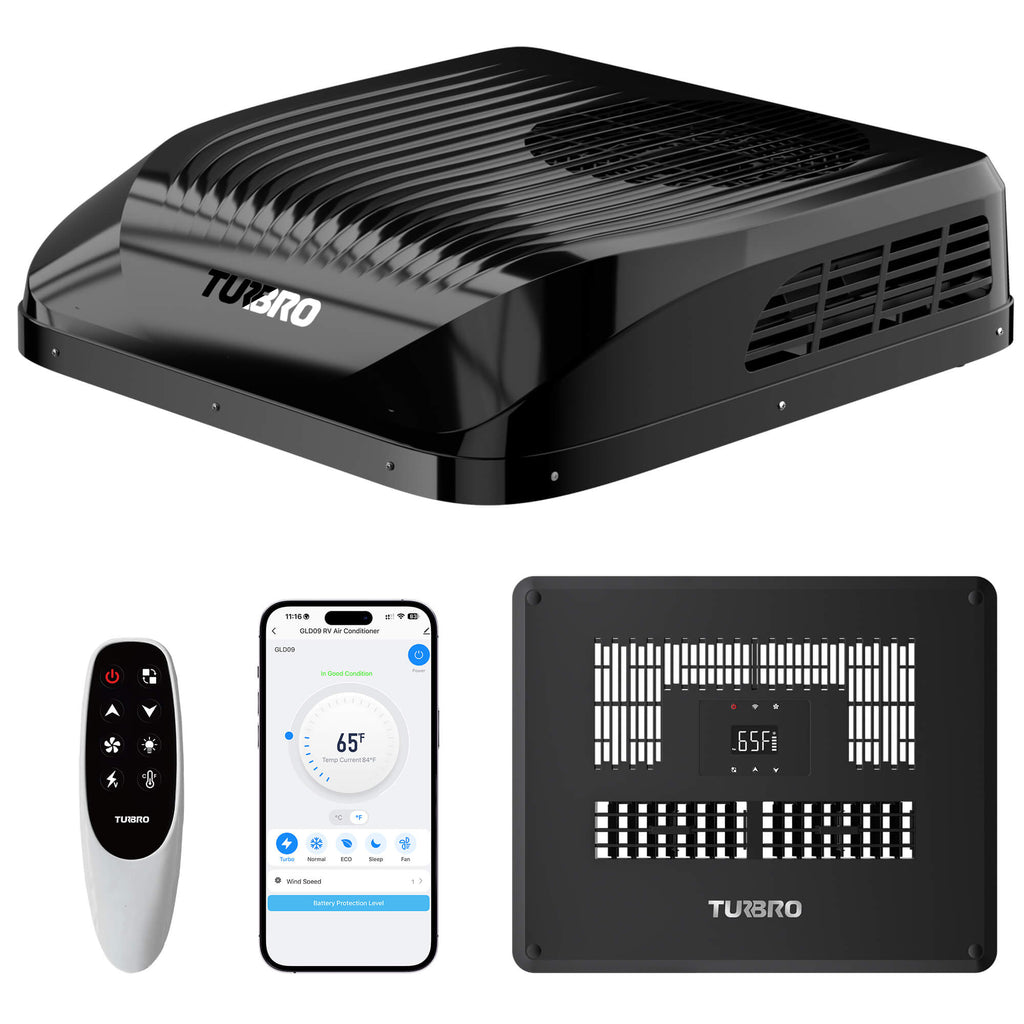

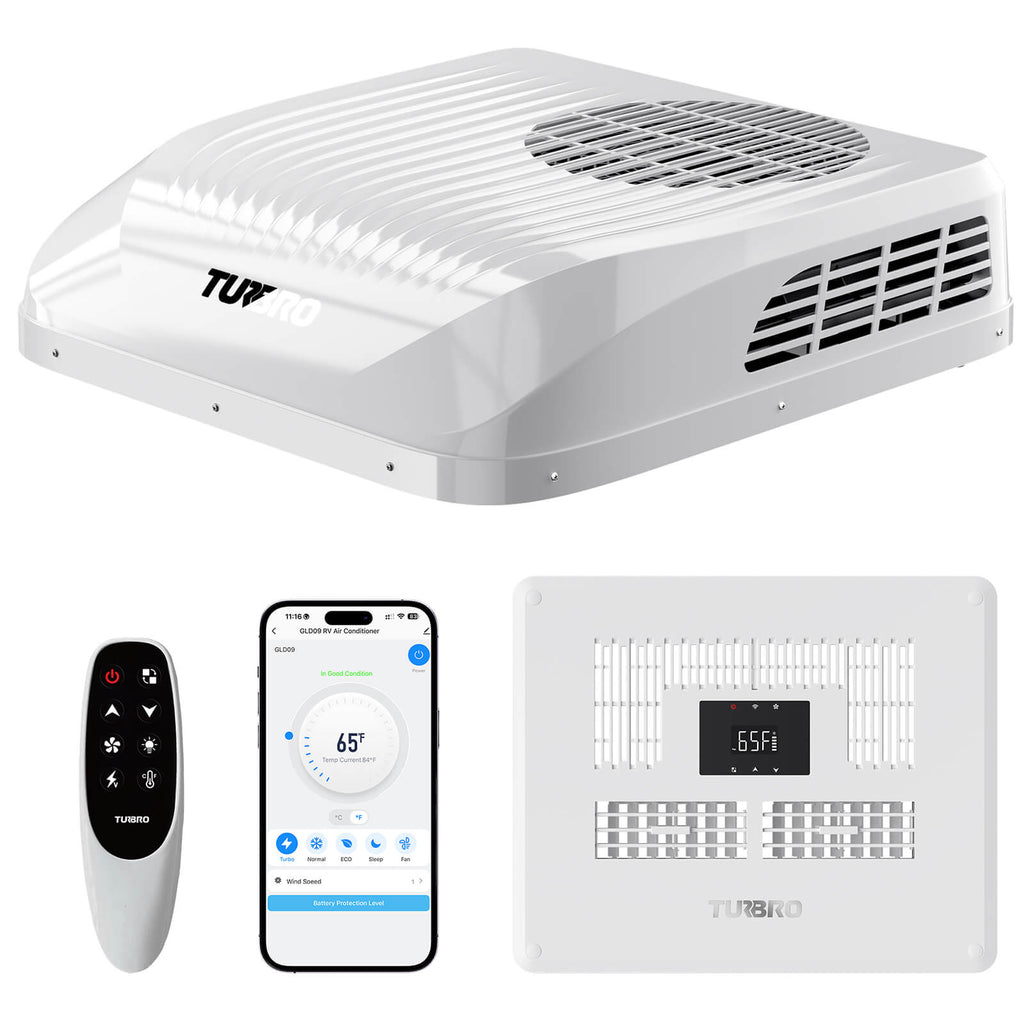

- Multiple control options: Smartphone app, remote, or control panel

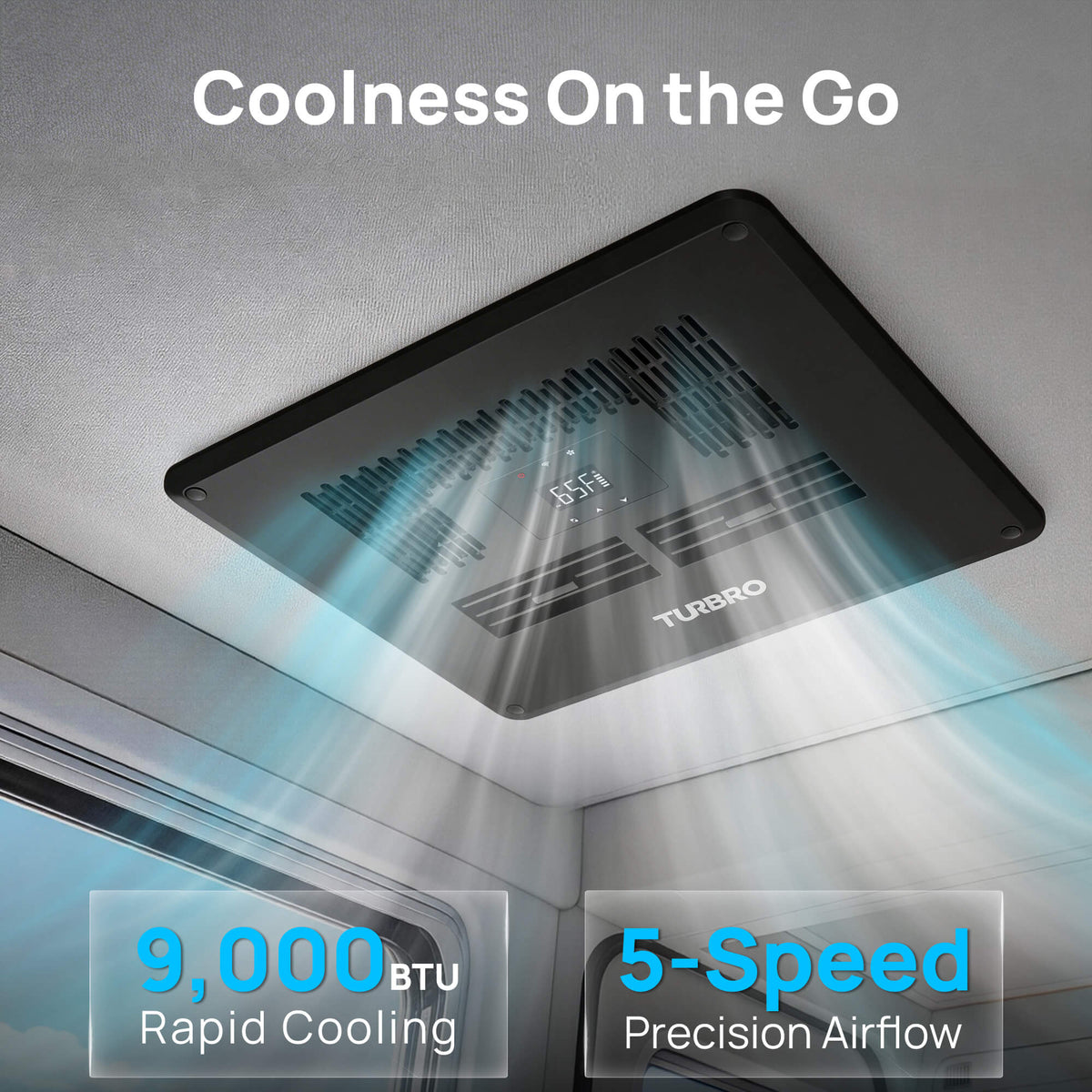

- Modes: Turbo mode for fast cooling, ECO mode, Sleep mode, and 5 fan speeds
- Quiet operation: Dual vibration-dampening system, as low as 40 dB in sleep mode
- Low-profile design: Slim rooftop unit to reduce wind resistance; ultra-slim indoor unit
- Non-ducted: Air flows directly from the indoor unit, no ductwork needed

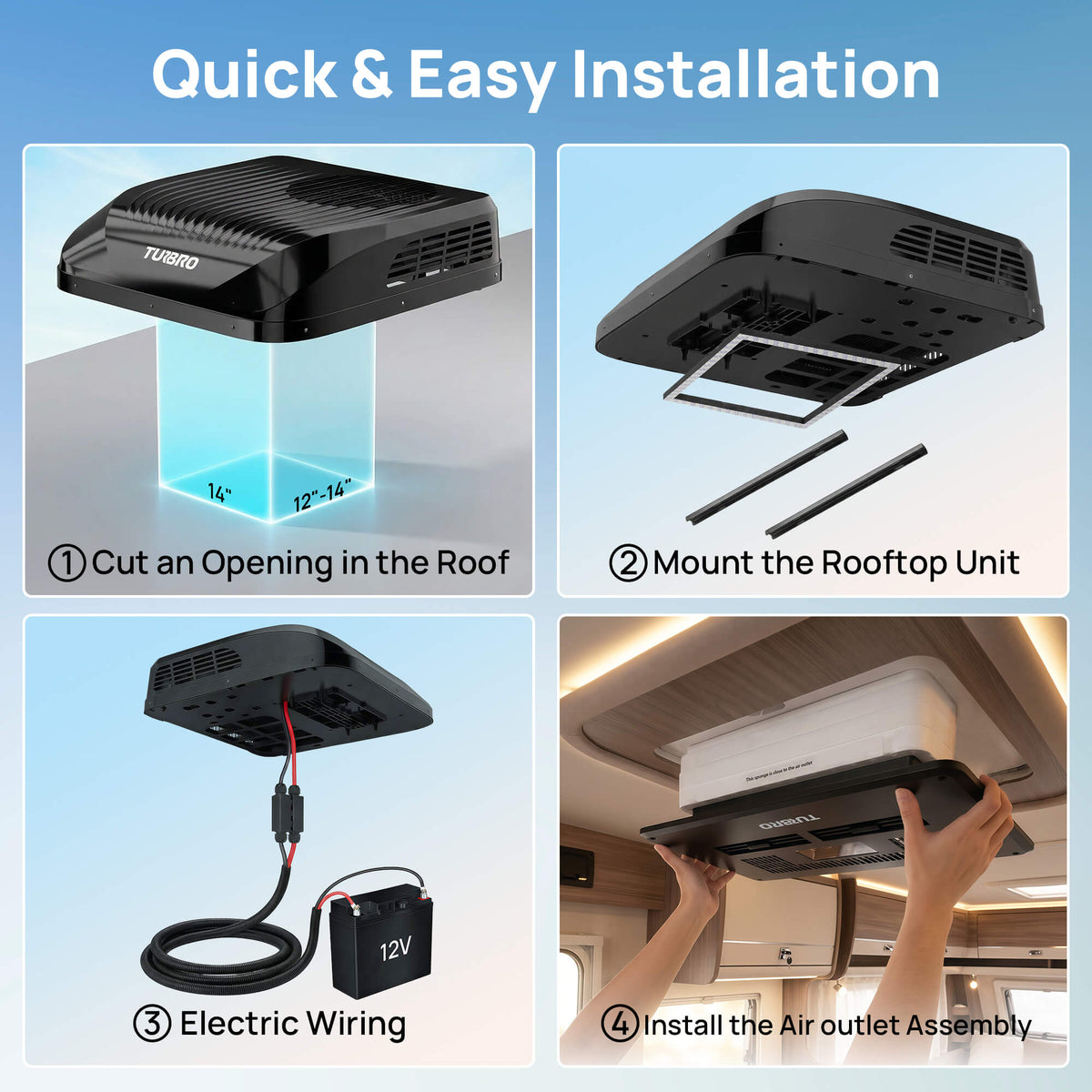

- Fits: 12–14″ × 14″ roof openings
Specifications
| Spec | Value |
|---|---|
| Power supply | 12V DC |
| Inverter compressor | Yes |
| Cooling capacity | 3,500–9,000 BTU |
| Heating | No |
| Rated cooling power | 180–600W |
| Rated cooling current | 50A |
| Min. circuit ampacity | 60A |
| Max. circuit protection | 100A |
| Ambient temperature range | 61–131°F |
| Refrigerant | R32 |
| Color | White/Black |
| Roof opening | 12–14″ × 14″ |

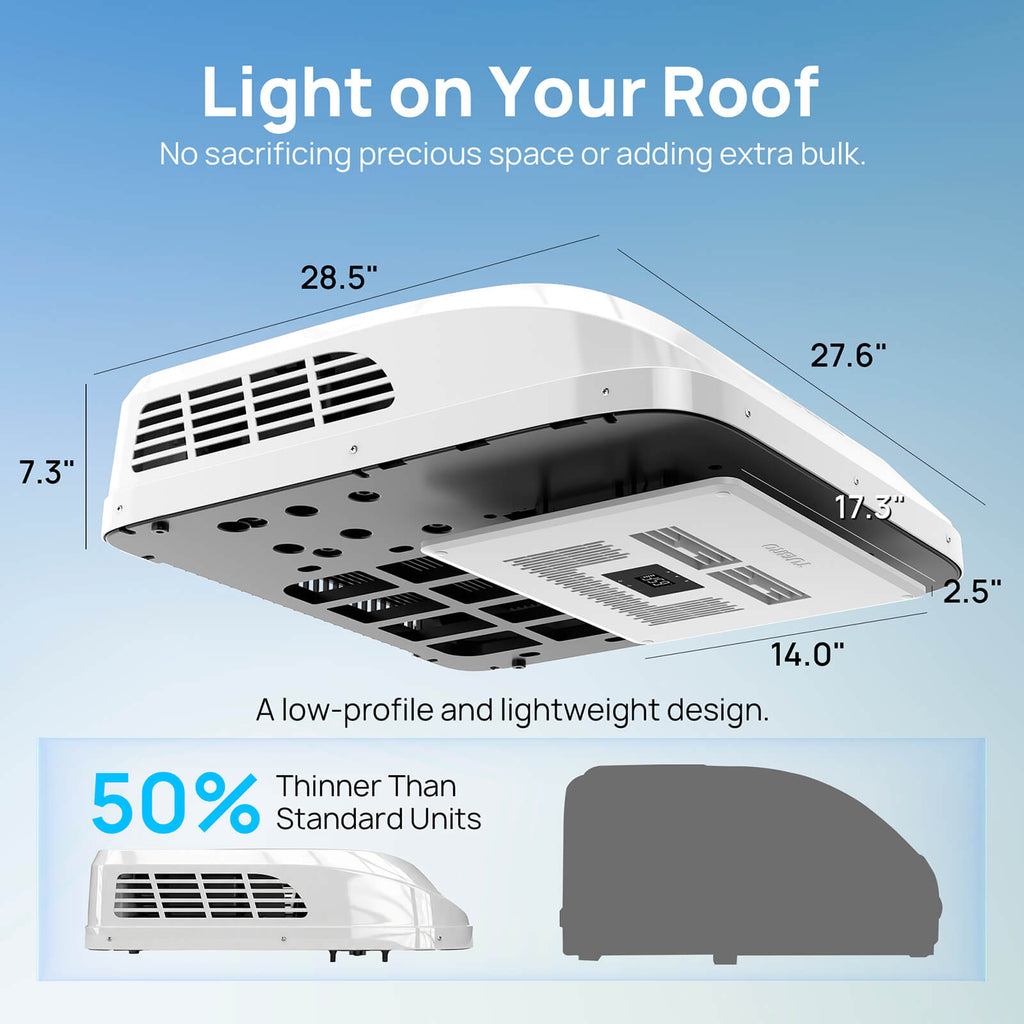

| Rooftop unit dimensions (W × D × H) | 27.6 × 28.5 × 7.3 in |
| Rooftop unit weight | 46.3 lb |
| Indoor unit dimensions (W × D × H) | 17.3 × 14.0 × 2.5 in |
| Indoor unit weight | 1.8 lb |
Ideal For
- Class B RVs and camper vans
- Truck campers
- Pop-up campers
- Mini travel trailers

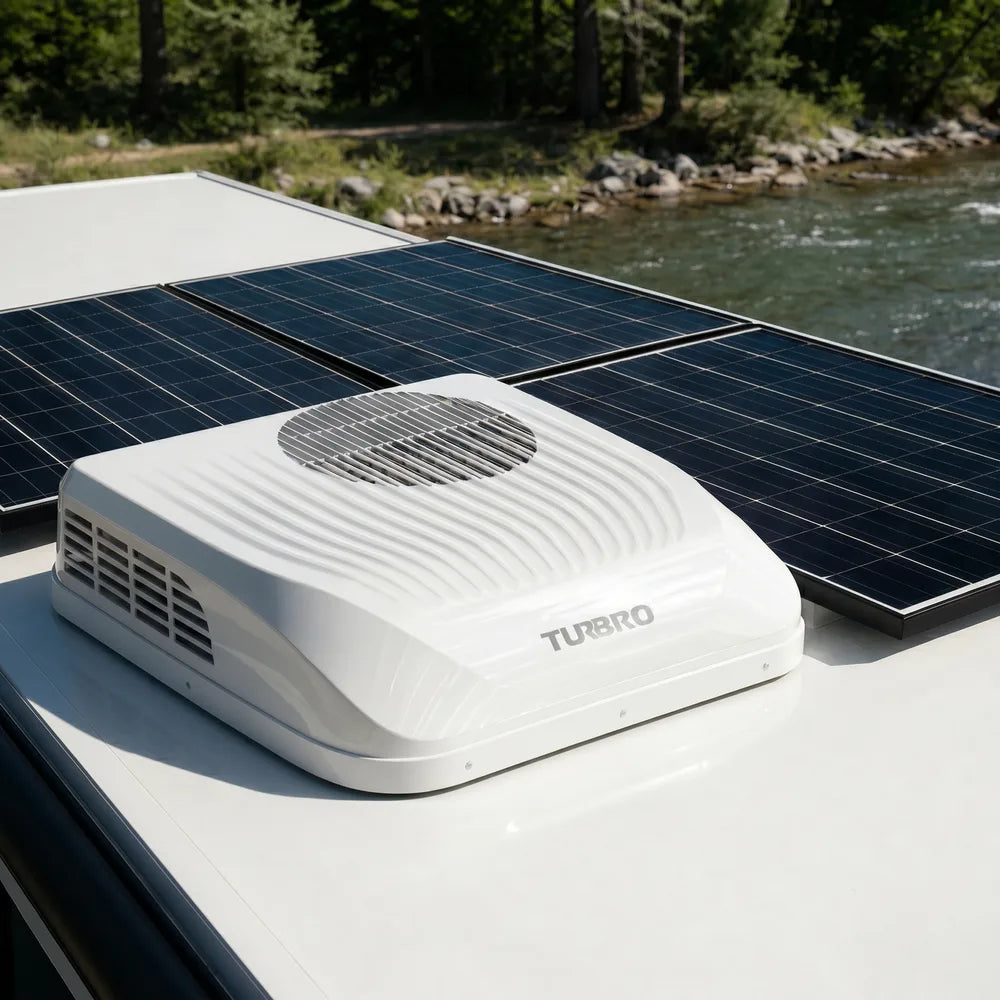

- Off-grid RV setups running on 12V batteries
Shipping Note
This air conditioner may ship in two separate packages that arrive on different dates. Please wait until you receive all packages before scheduling installation.
FAQs
Can I run this AC while driving?
Yes. Since it runs directly on 12V DC power, it can operate in transit without an inverter, as long as your battery system has enough capacity and charging support.
How much battery capacity do I need?
A battery bank of 300Ah or larger is recommended. With a 480Ah battery, it runs approximately 8–10 hours. ECO and Sleep modes adjust compressor speed to extend runtime.
Will it fit my RV?
It’s designed for Class B vans, camper vans, truck campers, pop-ups, and mini trailers with a 12–14″ × 14″ roof opening.
How quiet is it?
As low as 40 dB in sleep mode, thanks to the inverter compressor and dual vibration-dampening system.
Does it heat?
No, this unit is cooling only.
Do I need ductwork?
No. It’s a non-ducted unit that blows air directly from the indoor unit, which simplifies installation.
Can the wiring be routed externally, for example on a truck?
Yes. The casing has pre-drilled ports for external routing, which requires opening the shell to adjust the cables. Professional installation is recommended.
